SGC Satellite 12 relay exit

Available Unit(s) 70
Estimated production time 0 day(s)

    119.00 € 119.00 € 119.0 EUR

    99.17 €

    Option not available

    This combination does not exist.

    Checkout Add to cart
    2% discount on payments in advance

    More exits ON/OFF for your Smartgrowcontroller...

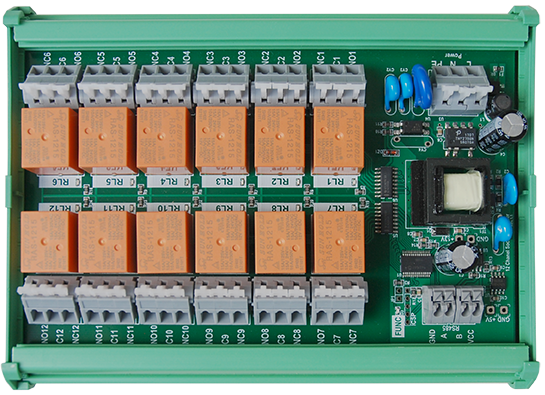

    This satellite with 12exit can be connected to the Smartgrowcontroller and occupies only 1 sensor exit. It appears a new satellite which 12exit can be programmed individual through the SGC. A power LED indicates the state of the device and 12pcs signal LED show the actual switch-condition of the relay.  Each relay can be powered at his own, dry contact carry max 10A (3A inductive) 230V (2'300W). All terminals are equipped with quick fastener (push to connect).

    The satellite can be mounted on a DIN-Rail (click) and is to install by electrician (experts).

    Sizes and technical data's:
    WxHxD= 165x125x45mm
    Weight: 465g
    Mounting: DIN-rail
    Volts: 230V-50Hz
    Exit: 12 x 10A (2'300W ohmic load)

    Packing contains:
    1x relay card 12exit
    1x Chogori BUS connector 4m cable
